Description

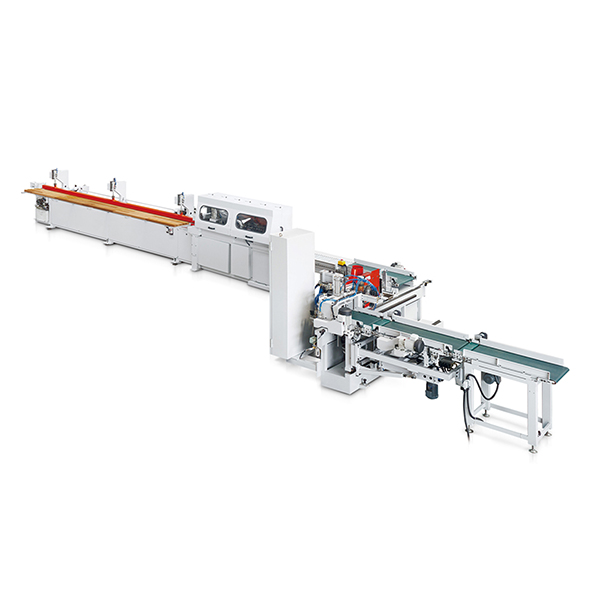

FL-24
FINGER SHAPER
MODEL F-C03
Max. width for working table 450 mm
Range of material length 90 – 700 mm
Range of material width 30 – 160 mm
Working table moving speed 2 ~ 3 cycle/min
Trimming saw speed 2800 rpm (50hz), 3400 rpm (60hz)
Finger cutter speed 5000 rpm
Scoring saw speed 2800 rpm (50hz), 3400rpm (60hz)
MOTOR HORSEPOWER
Working table motor 1 HP
Auto switching motor 1/4 HP
Conveyer belt motor 1/2 HP x 3 / 90 W x 2
Scoring saw motor 1 HP x 2
Trimming saw motor 3 HP
Finger cutter motor 7-1/2 HP
Finger cutter diameter ø70 / ø160 mm
Dust outlet diameter 6” x 1, 4” x 1, 3” x 2
Machine dimensions (LxHxW) 3600 x 1740 x 4750 mm
* The above data are not binding to details as improvements are incorporated from time to time.

FINGER ASSEMBLER – F-A17
MODEL 2.5M 16′
Length of product 2500 mm 4877 mm
Range of material thickness 20 – 60 mm 20 – 60 mm
Range of material width 20 – 160 mm 20 – 160 mm
MOTOR HORSEPOWER
Material feeding motor 2 HP, 1 HP 2 HP, 1 HP
Range of pressing pressure 0 ~ 100 Kg/cm² 0 ~ 100 Kg/cm²
Hydraulic pump motor 3 HP 5 HP
Sizing saw motor 5 HP 5 HP
Dust outlet diameter 4” (101.6mm) 4” (101.6mm)
Machine dimensions (LxHxW) 5130 x 1400 x 1520 mm 7500 x 1400 x 1520 mm
* The above data are not binding to details as improvements are incorporated from time to time.

INTIAL AUTOMATIC FEEDING TABLE
MODEL F-I17
Max. width for working table 450 mm
Max. material length 700 mm
Material feeding motor 1/2 HP
Length of working table 730 mm
Width of working table 660 mm
Height of material width 960 mm
* The above data are not binding to details as improvements are incorporated from time to time.

MANUAL FEEDING TABLE
MODEL F-D15
Max. width for working table 450 mm
Max. material length 700 mm
Length of working table 710 mm
Width of working table 830 mm
Height of material width 960 mm
* The above data are not binding to details as improvements are incorporated from time to time.
