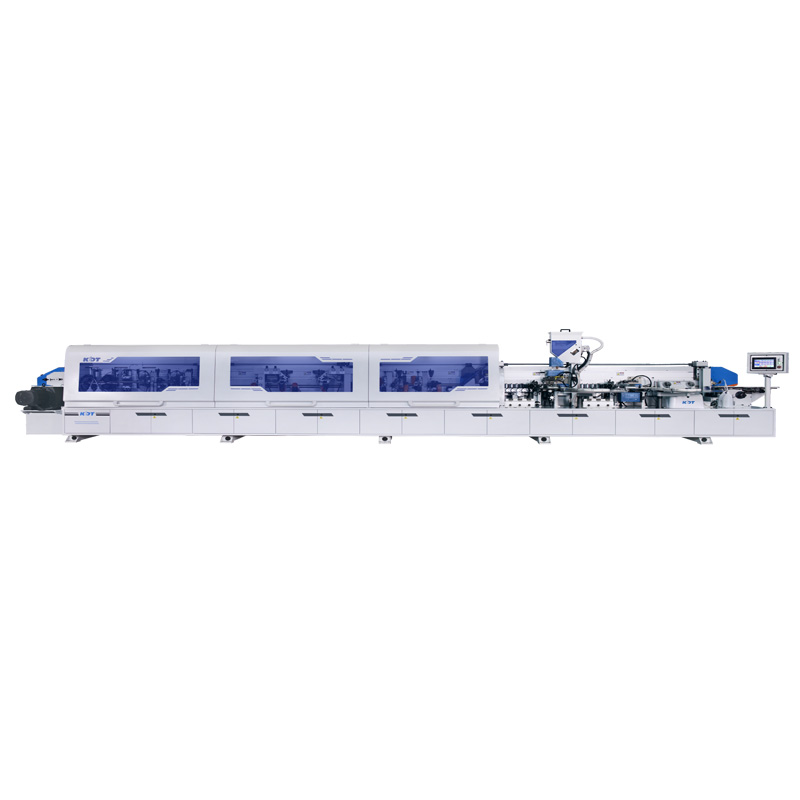

KE 668JGB Edgebander
Description
Glue pot + large glue pot.
Diamond trimming knife.
High speed tracking.
Track binder.
Product advantages
Pressure Beam with Belt，A large contact area on the panel ensures a stable conveys with high speed, improving edging quality.
Standard Gluing +Pre-melt system，Pre-melt system with quick-change glue pot equipped, and PUR terminal reserved, EVA glue automatically applies and pre-melts，With 12.5KG capacity in the EVA tank and 5 KG capacity in pre-melt box, it satisfies the EVA long-time supply and reduce times in manual.
High speed corner-rounding，4 trimming motors equipped, feed speed is 23m/min， realizing a fast and stable corner chamfering.
| Model: KE-668JGB | |
|---|---|
| Feeding Speed(m/min) | 15-23 |
| Tape thickness(mm) | 0.4-3 |
| Panel Thickness(mm) | 9-60 |
| Panel Length(mm) | ≥120 |
| Panel Width(mm) | ≥60 |
| Min. Panel Size(mm) | 120*60 |
| Total Power(kW) | 30.93 |
| Overall Size(L)(W)(H)(mm) | 10292L*990W*1960H |
| Size & QTY of Dust Hood | Ø100*2+Ø125*7 |
