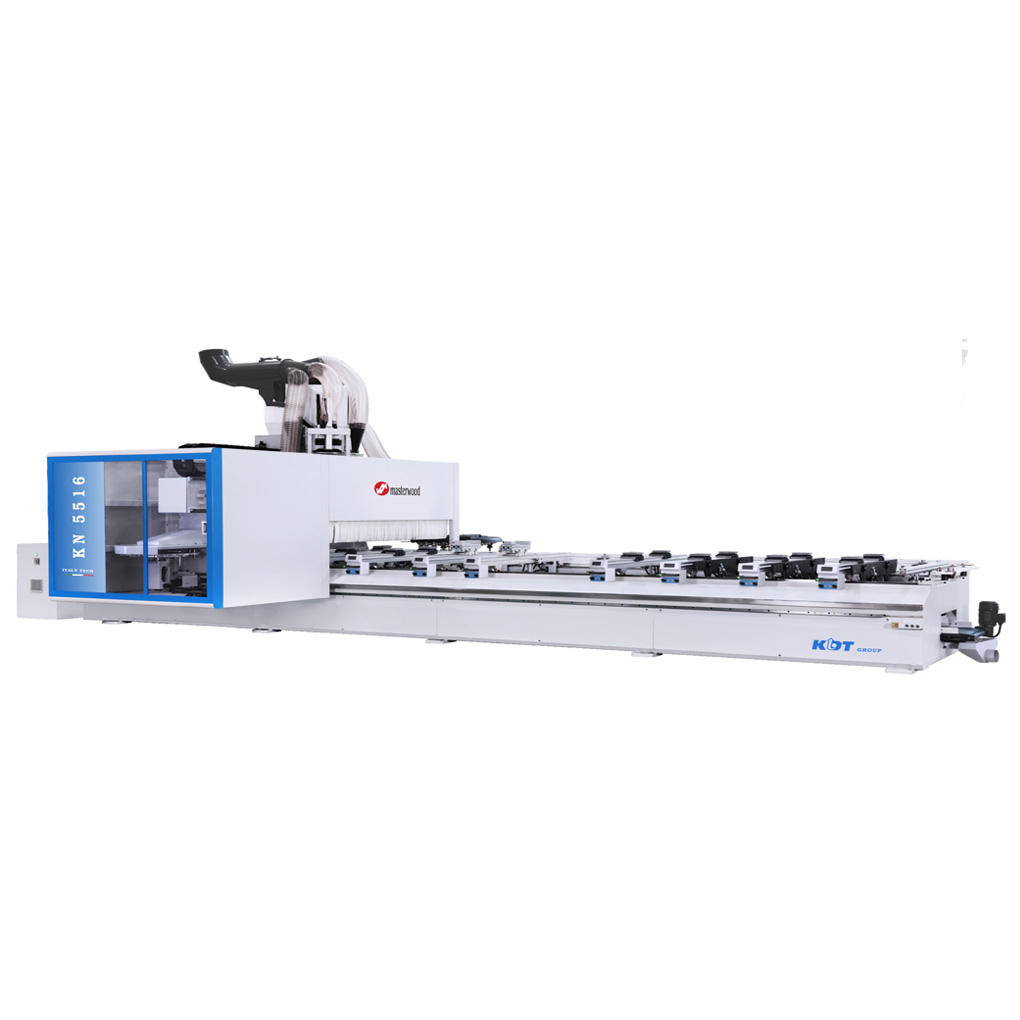

KN-5516 CNC Machining Centre

Description

Introduce Italian technology.

Italian OSA system Super large tool magazine, which can hold 44 tool magazines.

Water-cooled high-power electric spindle imported from Italy.

Product advantages

Solid wood and the artificial board can be available for the machining，Complicated shapes one-time forms, and complete functions meet diversified processing techniques.

Italian 5-axis heads equipped ，High-power water-cooled Spindle equipped, A/C axis can be rotated at a large angle, effectively realize high efficient routering.

Double-stationed working table，2 pcs of workpieces alternately and independently process, ensuring a stable and high efficient production.

CNC TECH
ALL-ROUND CONSIDERATION ON CNC MACHINE
CNC Machining center satisfies various processing technologies , such as drilling , routeing , and grooving , applicable to cabinet , doors and chairs manufacture , leads the woodworking machinery with.high efficiency and diversity and helps the era of intelligent customization.

Total solution of intelligent furniture production for the whole home.

Technical parameter

KN-5516
Working Size X/Y/Z(mm)	51501500200
Machine Size长(L)宽(W)高(H)(mm)	7830L4365W3100H
Total Power(kW)	29.5
Max.Moving Speed(m/min)	X axis 80
	Y axis 80
	Z1 axis（5 axis heads） 25
	Z2 axis（Drill head） 25
	A/C axis 40°/s
Travelling Stroke	X axis 6080(mm)
	X axis 3050(mm)
	X axis 640(mm)
	X axis -20°~200°
	X axis 0~720°
