Description

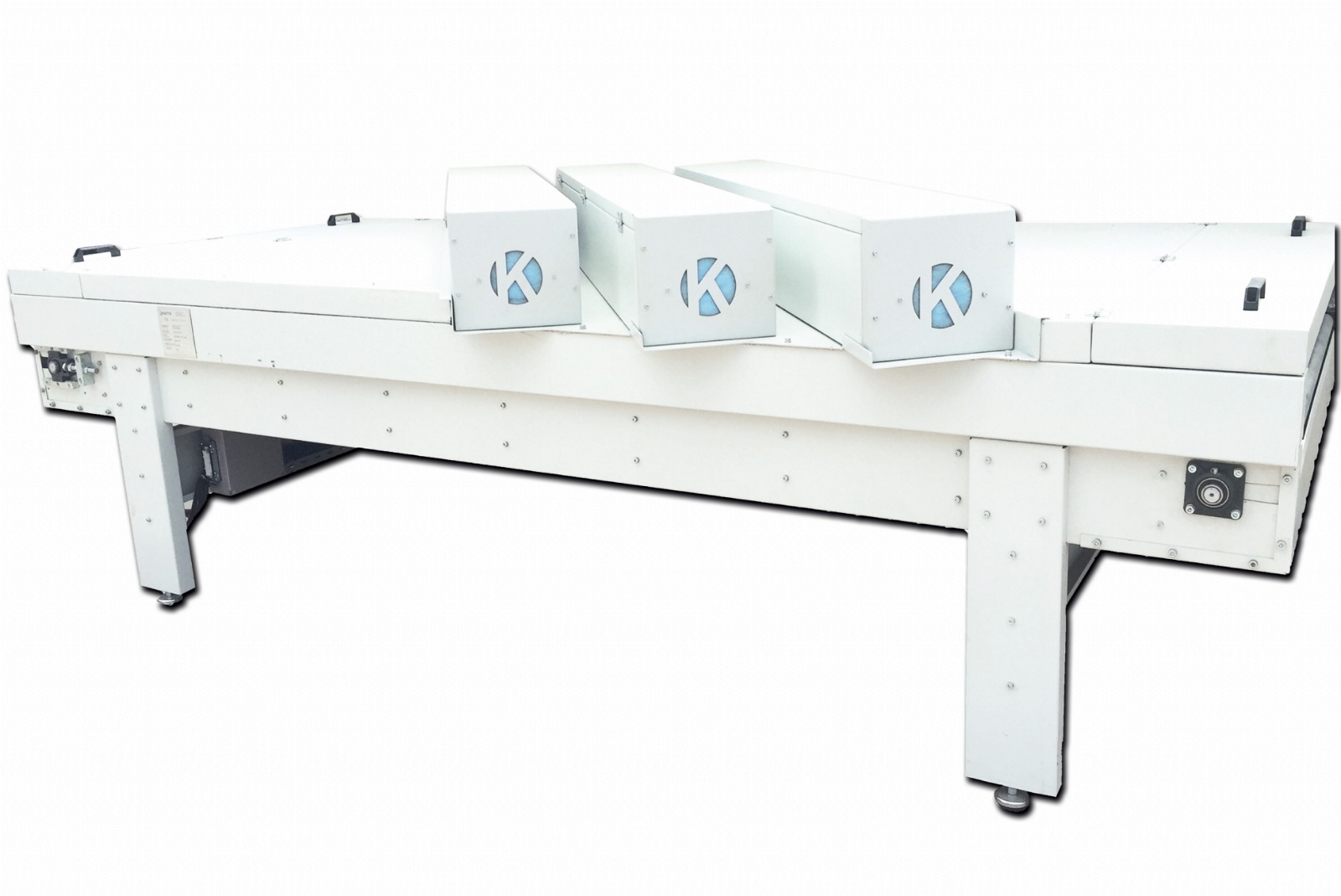

UVKH 24 is a quality and speed oriented new generation UV Drying System. It speeds up work with its 24 meters length and with its inverter ballast technology, it economizes energy consumption. Considering these features UVKH 24 becomes an inseparable part of furniture painting becomes a inseparable part of furniture painting

Sliding Input Conveyor is a standard equipment of KR UVKH 24. This conveyor serves as a bridge between Spraying Machine and Flash off tunnel.

As a standard feature; 16 meters of flash off tunnel is the place where the solvent on the product is taken out and paint spread on the surface. Its length can be extended optionally. It enables to do flash off with a

Speed of 2.5 m/min. Air conditioning plant upon the tunnel which can produce 60.000Kcal heat energy blows 30C-35C hot air inside the tunnel continuously. There is also an exhaust system which removes the dirty air inside the tunnel.

There are 2 Hg and 1 Ga total 3 UV Lamps in this tunnel. The system uses an electronic transformer controlled by PLC capable to continuously adjust the lamp power from %5 to %100. This new generation system offers energy saving and high quality to user.
