Description

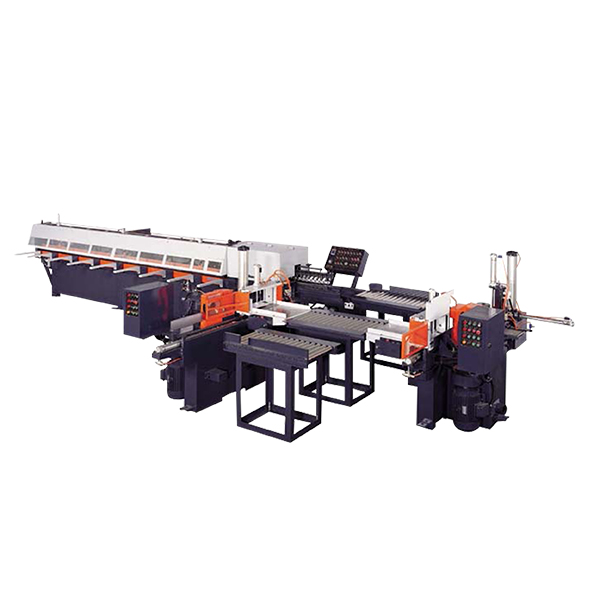

1 X F-C57 FINGER SHAPER, LEFT HAND

Max. available width working table – 450mm
Range of workpiece length – 115 – 1000mm
Range of workpiece height – 25 – 160mm
Table moving speed air / oil cylinder variable speed – 0 – 20m/min
Trim saw motor – 5 hp
Shaper cutter motor – 15 hp
Material of cutter – Tungsten Carbide
Dia. of cutter (in/out) – Ø70 / Ø160 mm
Main sawblade – 3t x Ø74 x Ø255 (80T)
Auxiliary sawblade – 12t x Ø74 x Ø240 (20T)
Dust hood outlet diameter – 6” x 1, 4” x 1
Machine dimension (LxHxW) – 1830 x 840 x 1300 mm
Net weight – 770 kgs
Noise value – 88.2 Db
Packing dimensions (LxHxW) – 1930 x 940 x 1250 mm
Gross weight – 850 kgs
Gluing – no glue applicator

1 X F-C58 FINGER SHAPER, RIGHT HAND

Max. available width working table – 450mm
Range of workpiece length – 115 – 1000mm
Range of workpiece height – 25 – 160mm
Table moving speed air / oil cylinder variable speed – 0 – 20m/min
Trim saw motor – 5 hp
Shaper cutter motor – 15 hp
Material of cutter – Tungsten Carbide
Dia. of cutter (in/out) – Ø70 / Ø160 mm
Main sawblade – 3t x Ø74 x Ø255 (80T)
Auxiliary sawblade – 12t x Ø74 x Ø240 (20T)
Dust hood outlet diameter – 6” x 1, 4” x 1
Machine dimension (LxHxW) – 1950 x 840 x 1300 mm
Net weight – 780 kgs
Noise value – 88.2 Db
Packing dimensions (LxHxW) – 2050 x 940 x 1250 mm
Gross weight – 860 kgs
Gluing – With glue applicator

3 X F-D05 ROLLER TABLE

Table width – 450 mm
Roller size – Ø57 x 450 mm
Machine height – 970 mm
Machine length – 1000 mm
Machine width – 655 mm

1 X F-A05-6 6,6M FINGER ASSEMBLER

Available length of product – 6600 mm
Available thickness of product – 15 – 60 mm
Available width of product – 15 – 160 mm
Feeding Speed – 80m/min
Capacity length product – 5 pcs
Max. assembly pressure – 0 – 150 kgs / cm²
Feed drive motor – 2 hp
Hydraulic power unit – 5 hp
Cut-off saw – 5 hp
Dust hood outlet diameter – 4” (101.6 mm)
Machine dimensions (LxWxH) – 9690 x 965 x 1350 mm
Noise value – 84 Db
Packing dimensions (LxWxH) – 8060 x 1065 x 1450 mm
