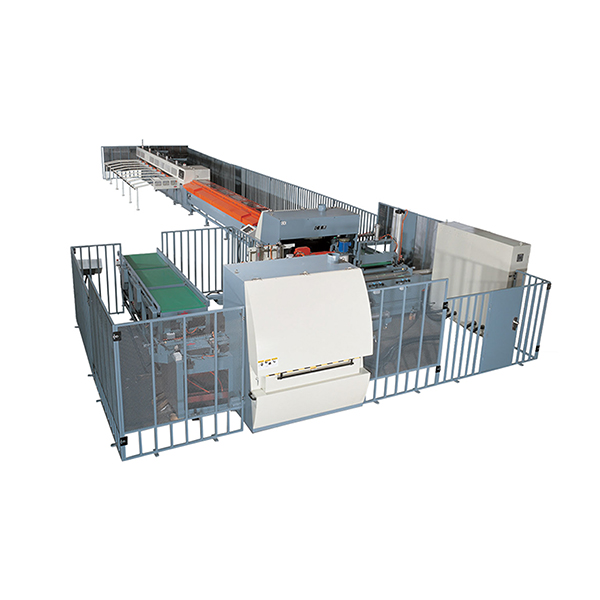

THREE INITIAL INFEED TABLES
MODEL F-I01
Conveyor table width 650 mm
Table height 860 mm
Feed drive motor 1 HP x 3
Overall length 3250 mm
Overall width 860 mm
Overall height 960 mm
Machine dimensions (LxWxH) 3350 x 1175 x 960 mm
Packing dimensions (LxWxH) 4190 x 1175 x 1780 mm
* The above data are not binding to details as improvements are incorporated from time to time.

FINGER SHAPER (Right End)
MODEL F-C05
Max. working table width 650 mm
Range of workpiece width 150 – 1000 mm
Range of workpiece height 20 – 160 mm
Table feed speed
(Air/hydraulic combination cylinder) 0 – 20 m/mm
Trim saw speed 2800 rpm (50hz), 3400rpm (60hz)
Finger cutter speed 5000 rpm
Scoring saw speed 2800 rpm (50hz), 3400rpm (60hz)
MOTOR HORSEPOWER
For table drive 1/2 HP
For scoring saw 1 HP
For trimming saw 10 HP
For finger cutter spindle 20 HP
Finger cutter spindle dia. ø50 mm
Finger cutter specif. (I.D./Max.O.D.) ø70 / ø160 mm
Dust outlet diameter 6″ x 2
Machine dimensions (LxHxW) 3670 x 1905 x 2155 mm
Noise level 88.2 Db
Packing dimensions (LxHxW) 3810 x 2120 x 2270 mm
* NOTE : ø50mm Clamping collars with various thickness for finger cutter are optional accessories to be ordered.

FINGER SHAPER (Left End)
MODEL F-C06
Max. working table width 650 mm
Range of workpiece length 150 – 1000 mm
Range of workpiece height 20 – 160 mm
Table feed speed (Air/hydraulic) 0 ~ 20 m/mim
Trim saw speed 2800 rpm (50hz), 3400rpm (60hz)
Finger cutter speed 5000 rpm
Upper scoring saw speed 2800 rpm (50hz), 3400rpm (60hz)
Lower scoring saw speed 2800 rpm (50hz), 3400rpm (60hz)
MOTOR HORSEPOWER
For table drive 1/2 HP x 2
For upper scoring saw 1 HP
For lower scoring saw 1 HP
For trimming saw 10 HP
For finger cutter spindle 20 HP
Finger cutter specif. (I.D./Max.O.D.) ø70 / ø160 mm
Dust outlet diameter 6″ x 2
Machine dimensions (LxHxW) 4160 x 1905 x 2155 mm
Noise level 88.2 Db
Packing dimensions (LxHxW) 4855 x 2120 x 2270 mm
* NOTE : ø50mm Clamping collars with various thickness for finger cutter are optional accessories to be ordered.

MANUAL WORKPIECE TURNOVER (on model F-D11)
MODEL F-D11
Conveyor table width 650 mm
Table height 860 mm
Feed drive motor 1 HP
Overall length 1420 mm
Overall width 1790 mm
Overall height 975 mm
* The above data are not binding to details as improvements are incorporated from time to time.

CHAIN DRIVE PRE-PRESS ASSEMBLY STAND – F-T05
MODEL 3M 6M
Max. pre-press length 3000 mm 6000 mm
Range of workpiece width 20 – 200 mm 20 – 200 mm
Range of workpiece height 20 – 100 mm 20 – 100 mm
Feed speed 80 m/mim 80 m/mim
MOTOR HORSEPOWER
For table drive 2 HP 2 HP
For left transmission 2 HP 2 HP
For right transmission 2 HP 2 HP
Machine dimensions (LxHxW) 4130 x 1060 x 1000 mm 7130 x 1060 x 1000 mm
Noise level 70 Db 70 Db
Packing dimensions (LxHxW) 4230 x 1160 x 1100 mm 7162 x 1275 x 1120 mm
* The above data are not binding to details as improvements are incorporated from time to time.

ASSEMBLE PRESS (DOUBLE SIDES PRESSING) – F-A03
MODEL 6M 6.8M
Max. product length 6200 mm 6800 mm
Range of material width 20 – 160 mm 20 – 160 mm
Range of material height 20 – 60 mm 20 – 60 mm
Feed speed 80 m/mim 80 m/mim
Range of pressing pressure 0 ~ 150 Kgs/cm² 0 ~ 150 Kgs/cm²
Production rate 5 pcs/mim 5 pcs/mim
MOTOR HORSEPOWER
For feeding 2 HP 2 HP
For hydraulic pump 7-1/2 HP 7-1/2 HP
For sizing saw 5 HP 5 HP
Saw arbor diameter ø1″ (ø25.4mm) ø1″ (ø25.4mm)
Dust outlet diameter 4″ (101.6mm) 4″ (101.6mm)
Machine dimensions (LxHxW) 7670 x 1370 x 1510 mm 8270 x 1370 x 1510 mm
Noise level 84 Db 84 Db
Packing dimensions (LxHxW) 7745 x 1585 x 1150 mm 8345 x 1585 x 1150 mm
* The above data are not binding to details as improvements are incorporated from time to time.
