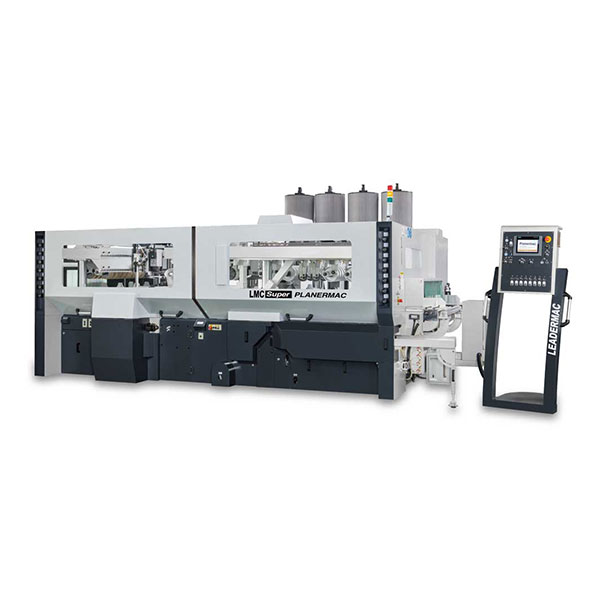

LEADERMAC Planermac series

Leadership Through Performance and Reliability
LEADERMAC’s wide variety of 4 side moulders have all the very latest technologies for increased productivity. These heavy duty moulders are designed to provide fast cutting speed and high accuracy. The machines are precision manufactured by our highly skilled technicians – plus Leadermac service, training, and moulding know-how is offered. No matter what your moulding jobs call for, there is a Leadermac 4 side moulder that’s right for you.

With fine features to give you the winning edge in 4 side moulding.

Ideal for producing profiled strips for construction material such as beams and boards etc… heavy & wider planning applications.
Machine with optional chamfering unit
Min. working width: 150mm
Max. working width: 1300mm (with tool cutting circle of 163mm)
Min. working thickness: 50mm
Max. working thickness: 260mm (with tool cutting circle of 163mm)
Minimum length of workpiece: 1500mm
1st bottom spindle – 40HP Allowable cutting circle 125 – 180mm
2nd top spindle – 40HP Allowable cutting circle 125 – 180mm
3rd right spindle – 30HP Allowable cutting circle 140 – 180mm
4th left spindle – 30HP Allowable cutting circle 140 – 180mm
All spindles with inverter brake
Up & down motor: 20HP x 1 inverter
Spindle diameter: 70mm
Spindle R.P.M: 5,500
Feed speed, infinitely variable: 6 – 15m/min

Choice of machine models, from LMC-445 (4-spindle),
LMC-545 (5-spindle), LMC-645 (6-spindle),
LMC-745 (7-spindle) to LMC-845 (8-spindle).

World Class Moulding Solutions

OUTSTANDING FEATURES:

Sound and safety enclosure – The entire machine is covered to reduce noise and improve safety
Hardened chrome feeding table – 0.3mm hardened chrome surface to increase service life
3 Stage pressure setting of feed roller – Pneumatic roller pressure compensates for large variances in workpiece thickness. Max. air pressure setting is 6 bar
Automatic oil lubrication for feeding table – Supplies oil on the 2 points of feeding table with timer control
1.4 meter infeed table
– Adjustment range for infeed table and edge-jointing fence is 10mm.
– Infeed fence with non-reference engraving
Steel body
Power driven upper roller – Steel rollers before top spindle, rubber rollers after top spindle under standard
spindle arrangement & 5 units of bottom roller are equipped with power driver roller on the feed table.

OUTBOARD BEARING SUPPORT ON HORIZONTAL SPINDLE

The horizontal spindle is equipped with outboard bearing support, providing solid support.

POWER DRIVEN UPPER ROLLERS

Steel rollers before the top spindle and rubber rollers after the top spindle are designed for standard spindle arrangement.

POWER DRIVE BOTTOM ROLLERS

5 units of bottom rollers on the feed table are powered, increasing the wood infeed effect.
