LEADERMAC Hypermac Series

A significant Reduction of Machining Time with Greater Profitability
The Hypermac Series 4-sided Moulder from LEADERMAC has been designed to achieve great throughput and increased profits. The Hypermac is compactly constructed with rugged construction that integrates many fine features such as high speed and heavy cutting operations, high accuracy and superior fine finish. With the well-planned PLC Control, quick setup and efficient operation can be easily achieved.

Thinking Ahead!Staying Ahead! LEADERMAC Hypermac Series
Hypermac 823

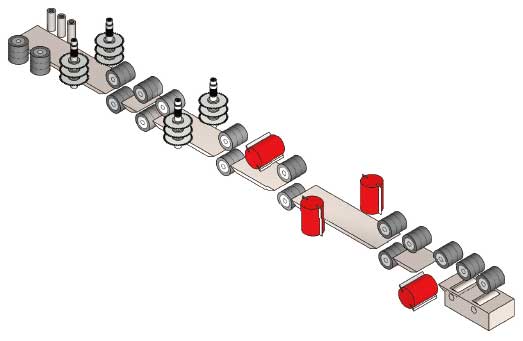

8-spindle configuration.
6,000 rpm spindle speed.
Fully sound safety enclosure with strobe free lighting.
Programmable control allows for convenient operation.
Steel body machine frame for improved stability and rigidity during high speed operation.
To 36m/min (125 fpm) feed speed. Variable feed speed is driven by a VFD-frequency inverted motor.
Hypermac 823
Designed for Highly Efficient Performance Year After Year!
LEADERMAC’s Hypermac 823 is able to maximize machining capabilities of complex profiles of wood. The Hypermac series, with its advanced design, will help you to achieve higher productivity and profitability. The Hypermac 823 is designed with 8 spindles, making it ideal for producing complex profiles in a single feed. It has 36m/min.(125fpm) feed speed combined with 6,000 rpm high spindle speed, allowing for high speed cutting, and extra fine finish can be achieved. Furthermore, the Hypermac 823 is equipped with a user-friendly programmable control for increased convenience of operation while eliminating the need of trial runs.

Speed up Your Moulding Operation with the Latest Technological Breakthroughs from LEADERMAC

World Class Moulding Solutions

OUTSTANDING FEATURES:

Feed Speeds of up to 36 mpm(120fpm) are standard (higher-optional)
Adjustment of each spindle can be easily performed using the front of the machine adjustment setup.
Separate adjustment of the vertical spindles and the support feed tables allow the feed tables to be positioned extremely close to the side cutterheads to provide added cutting stability.
The full Heavy Gauge Steel Sound Insulated Safety Enclosure serves as a chip guard and helps to reduce noise and has strobe free lighting
Each spindle is driven by an individual motor for powerful milling and easy control.
Pneumatic pressure of the feed rollers can be easily set to provide an outstanding feeding effect – 3 sections – each with individual Adjustment – ie. Infeed, Midfeed & Outfeed Top Rolls. Pressure Controls & Pressure Gauges mounted on outside of the enclosure post.
Table Surfaces, Guides, Chip Breakers & Pressure Plates are hard-chrome plated for maximum wear resistance.
All manually adjusted turning parts are housed in dry bearings for oil-free lubrication.
Automatic lubricator is provided to supply oil to the table sections for running parts.
Extra Heavy One-piece, Cast Iron or steel weldment Machine Frame is specially heat treated for maximum stability and rigidity by standard configuration.
Digital readouts for the Chip Breaker Shoes of top spindle(s).
Split Sectional Chip Breaker Ass’y in front of top spindle(s).
The powered outfeed rolls provide stable and smooth workpiece outfeed even for especially thin or smooth materials. The rolls remain perfectly parallel even after long-term use.
